2024 aluminum sheet is a typical high-strength Al-Cu-Mg aluminum, a key material for aircraft and automobiles. Haomei 2024 aluminum plate meets AS9100 aerospace quality management system.
As a typical high-strength Al-Cu-Mg duralumin, 2024 aluminium plate derives its core strength from the synergistic effect of its 3.8%-4.9% copper content and 1.2%-1.8% magnesium content. It owns a high tensile strength of 400-500 MPa and a yield strength of ≥245 MPa.
It maintains stable performance below 150 ℃and outperforms 7075 alloy at temperatures above 125 ℃. In the aerospace sector, it is a key material for aircraft fuselage skins, wing panels, and landing gear support structures. It also has applications in the automotive industry and other fields.
Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Other | Aluminum |
≦0.5 | ≦0.5 | 3.8-4.9 | 0.3-0.9 | 1.2-1.8 | 0.10 | 0.25 | 0.15 | ≦0.25 | remainder |
Tempers | Tensile Strength(MPa) | Yield Strength(MPa) | Elongation(%) |
O | 207-220 | ≦96 | 10-25 |
T3 | 400-427 | 269-276 | 10-15 |
T4 | 470 | 325 | 20 |
T6 | 480 | 370 | 5.1-8 |
T8 | 448-505 | 379-450 | 4-8 |
T351 | 470 | 280-325 | 10-19 |
Alloy | Thickness(mm) | Width(mm) | Length(mm) | Typical uses |
2024 | 0.3-600 | 800-2600 | 500-16000 | Propeller structural parts, aircraft frames, etc. |
Aircraft Fittings
Gears and Shafts
Bolts
Clock Parts
Computer Parts
Couplings
Fuse Parts
Hydraulic Valve Bodies
Fuselage structural
Wing tension members
Shear webs and ribs
Truck wheels and parts for transportation
Body Panels and Frames
Engine Components
Structural Elements in Buildings
Hardware of various types
1. Cut to size: We can provide any size you need.
2. Dedicated person: A reliable sales person is always at hand.
3. On-time delivery: We have special team to ensure on-time delivery.
4. Reliable after-sale service: We have staff to deal with your appeal any time.

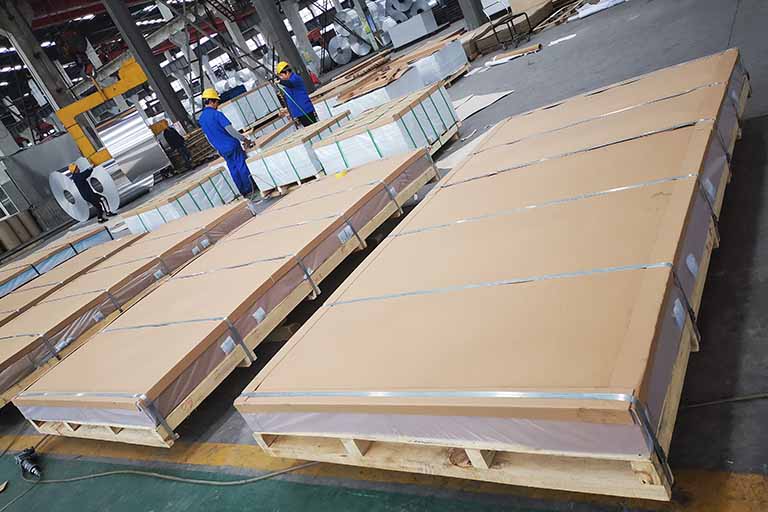

We adopts standard export shipping packaging and bundles steel strips according to the size of the aluminum sheet. According to our delivery experience, a 20-foot container can hold 22 tons of aluminum, and a 40-foot container can hold 25 tons of aluminum. Also, we can customize the packaging according to the needs of customers.
