Haomei Aluminum offers different standards of 5052 aluminum alloy sheets in shipbuilding, automotive parts, pressure vessels,etc. Different sizes are available. Inquire now!
5052 sheet is a rust-resistant Al-Mg alloy. It has significantly greater tensile and yield strength than pure aluminum, while also possessing excellent plasticity and formability, enabling easy processing operations such as stamping, bending, and welding.
It also offers excellent thermal and electrical conductivity and low-temperature resistance, maintaining mechanical properties at low temperatures. It also effectively resists corrosion from seawater, humid atmospheres, and various chemical media.
Its core advantage lies in its balanced comprehensive performance. It not only meets the dual requirements of material corrosion resistance and certain structural strength, but also has excellent processing adaptability and outstanding cost-effectiveness.
It is an ideal aluminum material for achieving a perfect combination of lightweight and functionality in the fields of ships, automotive parts, home appliance housings, pressure vessels and decorative building materials.
Si | Fe | Cu | Mn | Mg | Cr | Zn | Other each | Others total | Al |
0.25 | 0.40 | 0.10 | 0.10 | 2.2-2.8 | 0.15-0.35 | 0.10 | 0.05 | 0.15 | remainder |
Alloy | Thickness(mm) | Length(mm) | Width(mm) |
5052 | 0.1-600 | 20-2650 | 500-16000 |
5052 aluminum properties are regulated by heat treatment and cold working processes to form a variety of practical tempers, among which O temper (fully annealed state), H32 temper (cold hardening + stabilized state), H34 temper (cold hardening + stabilized state, the hardening degree is higher than H32), and H112 temper (natural aging state after hot rolling/cold working) are the most commonly used.
Temper | Tensile strength(MPa) | Yield strength(MPa) | Elongation(%) | Features | Applicable processing ways |
O | 170-190 | 70-90 | ≧20 | Optimal plasticity and no internal stress | Deep stamping, complex bending, and welding |
H32 | 220-240 | 180-200 | 10-15 | Good strength-plasticity balance | simple stamping, bending, and welding |
H34 | 240-260 | 200-220 | 8-12 | High strength and moderate plasticity | low-deformation forming and load-bearing parts |
H112 | 180-210 | 80-120 | ≧15 | uniform properties through the thickness | cutting, drilling, and bolting |

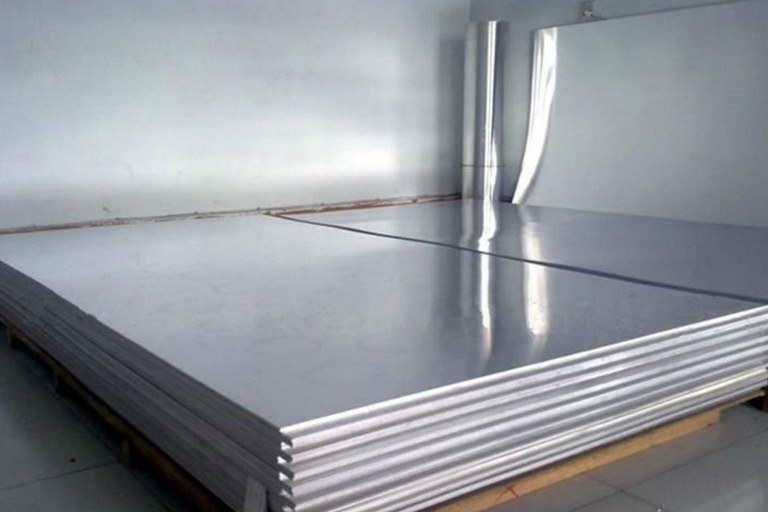

Plain sheet
Plain sheet with a PVC coating on one side
Aluminum closure sheet
Coated aluminum sheet
Aluminum tread plate
Anodized aluminum sheet
Boat Hulls
Marine Hardware
Fuel Tanks
Car Body Panels
Roofing Systems
Kitchen Appliances
Cookware
Signage
Heat Exchangers

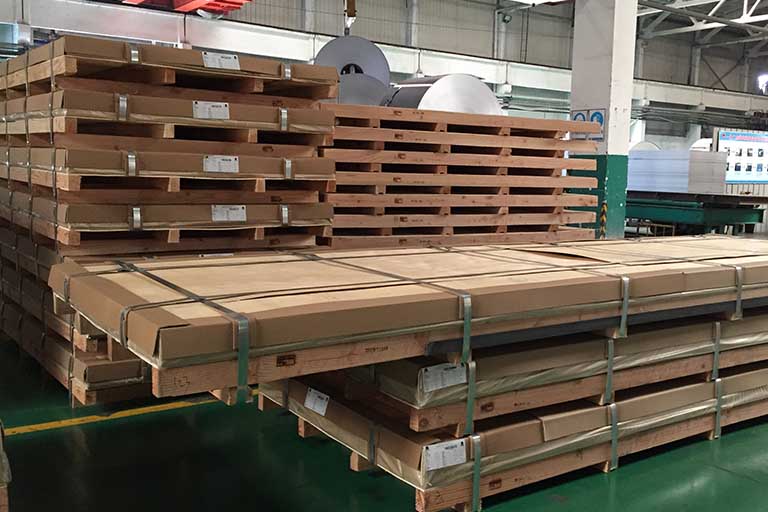

We adopts standard export shipping packaging and bundles steel strips according to the size of the aluminum sheet. According to our delivery experience, a 20-foot container can hold 22 tons of aluminum, and a 40-foot container can hold 25 tons of aluminum. Also, we can customize the packaging according to the needs of customers.
1. Cut to size: We can provide any size you need.
2. Dedicated person: A reliable sales person is always at hand.
3. On-time delivery: We have special team to ensure on-time delivery.
4. Reliable after-sale service: We have staff to deal with your appeal any time.
